Dust, flux residues, grease, fingerprints, and other impurities can accumulate on electronic parts and assemblies during production, maintenance, assembly, and regular handling. When contaminants are found near small parts, tight spaces, and intricate surfaces, manual cleaning can be challenging for repair shops, electronics workshops, labs, and service centers. By using ultrasonic cavitation to reach regions that are challenging to reach with traditional brushing, a well-chosen ultrasonic cleaner for electronics can enhance the cleaning process.
Why Use Ultrasonic Cleaning for Electronics
Cleaning the surfaces, gaps, and structures of small electronic parts by hand can be challenging. In an appropriate cleaning solution, ultrasonic cleaning produces tiny cavitation bubbles. The energy released when these bubbles burst aids in removing impurities from surfaces and difficult-to-reach places. As a result, ultrasonic cleaning helps with detachable electronic parts and components where traditional wiping or brushing is ineffective.
However, the cleaning method must be carefully chosen for electronics applications. The components' construction, materials, coatings, adhesives, seals, and other delicate components determine whether ultrasonic cleaning is appropriate. It is not advisable to put an entire electronic device in an ultrasonic cleaner without first determining whether it is compatible.
Suitable for Electronics Workshops and Maintenance
There are several uses for this 4L ultrasonic cleaner, such as:
- Circuit board and PCB cleaning
- Cleaning of electronic components
- Cleaning of connectors
- Workshops for maintenance and repairs
- Cleaning of precision parts
- Applications in laboratories
- Cleaning of small mechanical and metal parts
The 4L size provides a balance between cleaning capacity, workspace requirements, and operating convenience for companies that require a small ultrasonic cleaner for routine electronics maintenance.

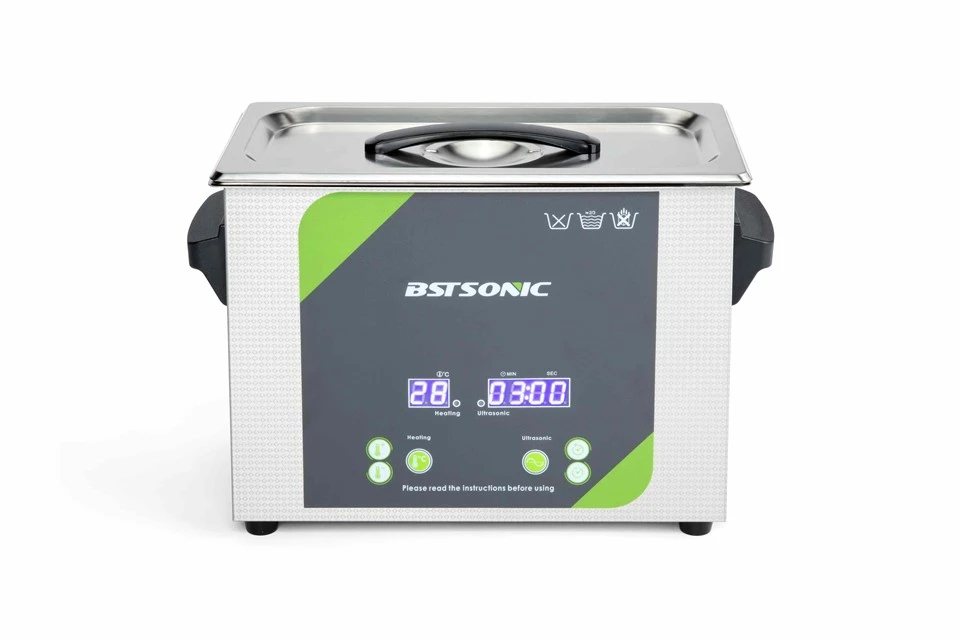

Specification of ultrasonic cleaner for electronics
|
Name |
Ultrasonic cleaner |
Model |
BS240B |
|
Tank capacity |
4L |
Ultrasonic Power |
180W |
|
Ultrasonic Frequency |
20 or 40KHz |
Time setting |
1-99minutes |
|
Temperature range |
0-80 ℃ |
Internal tank size |
300×155×100mm |
|
External dimensions |
312×162×240mm |
1pc Gross weight(kgs) |
4.3kgs |
|
Packing size for 1pc |
410×250×330mm |

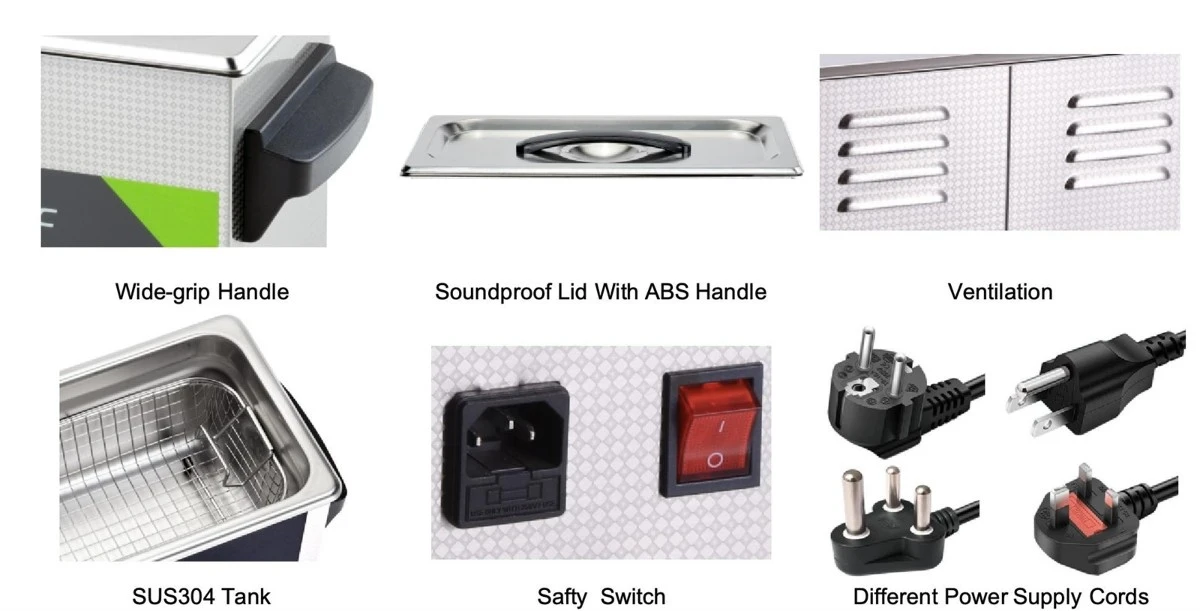

Carrying handles |
✓ |
|
Lid |
✓ |
Basket |
✓ |
Designed for PCB and Precision Component Cleaning
For workshops, repair shops, labs, and electronics maintenance applications, the 4L tank offers a useful capacity. It can assist in removing the following, depending on the cleaning solution and the item being cleaned:
- Dirt and dust
- Soldering residues and flux
- Grease and oil
- Surface contamination in general and fingerprints
- Tiny particles from components and gaps
When contaminants are found near corners, holes, terminals, or other places that are challenging to clean by hand, ultrasonic cleaning is especially helpful.
FAQ-ultrasonic cleaner for electronics
Q: Can an ultrasonic cleaner be used to clean PCB boards?
A: Yes, there are some PCB cleaning uses for ultrasonic cleaning. Nevertheless, not all electronic components or PCBs are appropriate for submersion. Special handling may be necessary for components that contain batteries, screens, speakers, certain coatings, or other delicate structures.
Q: What can a 4L ultrasonic cleaner clean?
A: It can be used for suitable electronic components, PCB boards, connectors, precision parts, small metal parts and other washable items.
Q: Can I use water to clean electronics?
A: The material and contamination should be taken into consideration while choosing the cleaning solution. It is usually preferable to use an electronics-compatible cleaning solution rather than just tap water for electronic components.
Q: Does ultrasonic cleaning remove flux residue?
A: Ultrasonic cavitation can help loosen flux and other residues, but cleaning effectiveness depends on the type of flux, contamination level, cleaning solution, temperature and cleaning time.
